Motorola Solutions

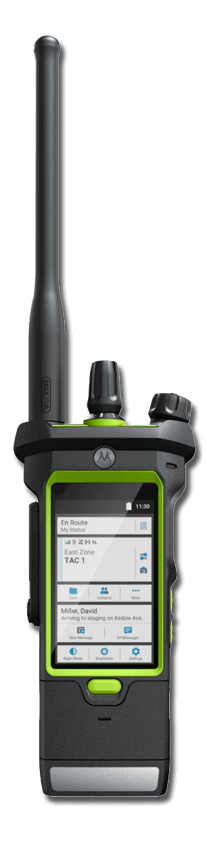

APX NEXT XN brings groundbreaking durability & mobilized intelligence to your lifeline so you are ready for the unexpected in and out of the hazard zone.
Outperform The Unexpected
You’ve seen tough, but not like this. APX NEXT XN takes toughness to a new level, built to the latest fire standards. Newly added software features enhance fireground safety and post incident review. Ruggedness and safety is bolstered with our leading APX audio in both the radio and XVN500 RSM, for the most intelligible audio in any environment. And when you need to go beyond voice, you are ultra-connected with LTE, GPS, Wi-Fi, and Bluetooth.
Frequency Band:
VHF, UHF R1, UHF R2, 700/800 MHz
Frequency Range:
700 (762 -776, 792-806 MHz), 800 (806 - 825, 851-870 MHz), VHF (136-174 MHz), UHF R1 (380-470 MHz), UHF R2 (450-520 MHz)
Power Output:
1-2.5 watts 700, 1-3 watts 800 MHz, 1-6 watts VHF, 1-5 watts UHF
Channel spacing:
12.5/20/25 kHz
Dimensions H x W x D (with standard battery)
7"x 2.5" x 2.1"
Weight (with standard battery)
24 oz.
Keypad/Keys
Touchscreen
Display
3.6" Mission-critical Touchscreen: 800x480 TFT 24-bit Full Color Transflective Display, 1 mm Toughened Glass Lens
Capacitive Touch Technology
High Temperature Functionality
500ºF for 5 minutes
Operating temperature
-30ºC / +60ºC
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
IP Standards
Dust Resistance: IP6X
Water Resistance (Submersion): IPX8
Operate in uncharted extremes.
You’ve seen tough, but not like this. APX NEXT XN takes toughness to a new level, built to the latest fire standards. Newly added software features enhance fireground safety and post incident review. Ruggedness and safety is bolstered with our leading APX audio in both the radio and XVN500 RSM, for the most intelligible audio in any environment. And when you need to go beyond voice, you are ultra-connected with LTE, GPS, Wi-Fi, and Bluetooth.
Effortless usability and versatility.
APX NEXT XN is designed for effortless usability in day-to-day operations and when everything is on the line. Oversized intuitive controls are glovable and minimized from accidental activations. When you need more data, the mission-critical touchscreen works in rain, heat, dust, and dirt. ViQi understands a range of commands, so you can operate your radio with eyes-up awareness. Every interaction is simple, fast, and logical. You stay focused on what matters—your call, your crew, and your safety.
Expandable intelligence for today and beyond.
The nature of the incidents you call on can change rapidly, just like your needs for new technology. APX NEXT XN offers a secure extensible platform for new capabilities to be added as your needs evolve. Smart applications keep you connected when you go beyond system coverage and put intelligence into your hands with vital information, from location details to sharing important multimedia for enhanced collaboration with your crew. Because when you need information, you need it fast.
Provision and optimize fleet management.
Behind each of your firefighters stands a team—from technicians to IT staff to network engineers— working to keep them safe. APX NEXT XN gives you back time. With our RadioCentral suite you can keep radios in the field with remote updates and get insights to fleet optimization with radio analytics. A range of device services help manage your operations and help achieve performance targets. With APX NEXT XN, your ownership experience is streamlined, and your firefighters stay focused and ready.
SmartConnect
SmartLocate
SmartMapping
SmartMessaging
SmartProgramming
SmartTouch
ViQi Virtual Assistant
 | AN000417A01 700/800 MHz, GPS Whip Antenna |
 | 32012144001 Gray Antenna ID Band (pack of 10) |
 | 32012144002 Yellow Antenna ID Band (pack of 10) |
 | 32012144003 Green Antenna ID Band (pack of 10) |
 | 32012144004 Blue Antenna ID Band (pack of 10) |
 | 32012144005 Purple Antenna ID Band (pack of 10) |
 | PMNN4812 IMPRES 2 Li-ion 3400 mAh Battery, IP68 Rugged* |
 | PMLN8328 APX NEXT XN Boston Leather Carry Case |
 | AY000223A01 Boston Leather Fireman’s Radio Strap with button back holder |
 | AY000229A01 Boston Leather Fireman’s Radio Strap with button back holder - XL |
 | RLN6488 Boston Leather Anti-Sway Strap for Boston Leather Fireman’s Radio Strap |
 | RLN6486 Boston Leather Fireman’s Radio Strap |
 | NNTN9115 IMPRES 2 Multi-Unit Charger |
 | NNTN9199 IMPRES 2 Single-Unit Charger |
 | NNTN9212 APX NEXT Pocket (Only for use with NNTN8844) |
 | PMPN4604 IMPRES 2 Single-Unit Fast Charger, US/NA 115V |
 | PMPN4591 IMPRES 2 Multi-Unit Fast Charger with 6 Displays and 6 Integrated USB Charging Ports, US/NA 100-240V |
| AS000178A01 Pocket to use with IMPRES 2 Multi-Unit Fast Charger |
 | NLN7967 Wall Mount Bracket for IMPRES 2 Multi-Unit Chargers |
 | PS000040A01 Replacement Power Supply Unit for IMPRES 2 Single-Unit Fast Charger, US/NA 115V |
 | PS000116A01 Replacement Power Supply for IMPRES 2 Single-Unit Fast Charger, 100-240 VAC without Power Cord |
 | 3087791G01 Power Cord for IMPRES 2 Multi-Unit Charger, US/CAN Plug |
| PS000040A02 Replacement Power Supply Unit for IMPRES 2 Single-Unit Fast Charger, US/NA 115V |
| PMPN4639 APX Next Vehicle Charger |
 | PMMN4138 XVN500 High Impact Green, No Channel Knob, Xtreme Temperature Cable
|
| CB001073A01 Xtreme Temperature Replacement Cable for XVN500 RSM
|
| PMLN9005 XVN500 RSM Clip Assembly with brass insert designed to work with the Boston Leather Straps (AY000223A01, AY000229A01) requires Clip Button NNTN8749
|
 | NNTN8749 Clip Button
|
H55TGU9PW8AN APX NEXT XN; All-Band Model Portable
H45TGU9PW8AN APX NEXT XN; Single-Band Model Portable
